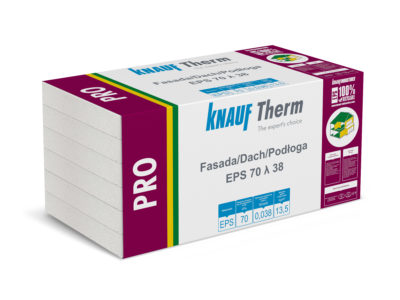

KNAUF Therm PRO Facade / Roof / Floor EPS 70 λ 38
KNAUF Therm PRO Facade / Roof / Floor EPS 70 λ 38
External thermal insulation is carried out using the “slightly damp” method (BSO).
- Filling expansion joints
- Insulation of balcony loggias
- Thermal insulation of frames and window sills
- Floor insulation
- Thermal insulation of solid and ventilated flat roofs
- Base for wall and roof sandwich panels with roofing felt
- Thermal insulation of the floor in the underfloor heating system
MARKING BY STANDARD
KNAUF Therm PRO facade / roof / floor EPS 70 λ 38 expanded polystyrene panels are marked with the following code in accordance with EN 13163: 2012 + A1: 2015 EPS –EN 13163-T (1) -L (2) -W (2) -S ( 2) -P (5) -BS115-CS (10) 70-DS (N) 2-DS (70, -) 1-TR100
| λ D Thermal conductivity W/(mK) | ≤ 0,038 |
| Shape | Rectangular or milled |
| Dimensions | 1000 x 500mm max mat..: 4000 x 1200mm |
| Weight [kg/m3] | 13,5 |
| Fire resistance | Self-extinguishing |
| Fire resistance class | E |
| Flexural strength level (kPa) | BS 115 (≥ 115) |
| Tensile strength perpendicular to surface (kPa) | TR 100 (≥ 100) |
