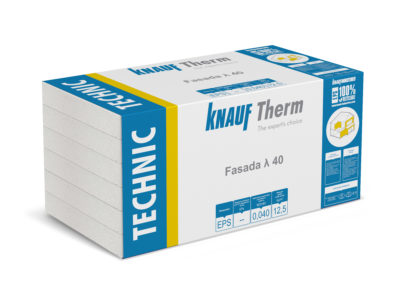

Technic Fasada EPS λ 40
Technic Fasada EPS λ 40
THIS PRODUCT IS FOR:
- for external thermal insulation by the “light wet” method (BSO)
- for external thermal insulation by the “light dry” method
- for thermal insulation of the frame wall surface
- for filling expansion joints
- for thermal insulation in a closed three-layer wall gap
- thermal insulation in the gap of the ventilated three-layer wall
- for thermal insulation of frames and window sills
MARKING BY STANDARD
KNAUF Therm TECH Facade λ 40 polystyrene panels are marked with the following code according to EN 13163: 2012 + A1: 2015
EPS –EN 13163-T (1) -L (2) -W (2) -S (2) -P (5) -BS75-DS (N) 2-DS (70, -) 1 – TR 80
| λ D Thermal conductivity W/(mK) | ≤ 0,040 |
| Shape | Rectangular or milled |
| Dimensions | 1000 x 500mm max mat..: 4000 x 1200mm |
| Weight [kg/m3] | 12,5 |
| Fire resistance | Self-extinguishing |
| Fire resistance class | E |
| Flexural strength level (kPa) | BS 100 (≥ 100) |
| Tensile strength perpendicular to surface (kPa) | TR 100 (≥ 100) |
