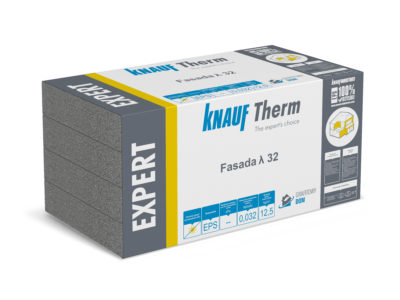

Knauf Therm Expert Fasada EPS λ 32
Knauf Therm Expert Fasada EPS λ 32
External thermal insulation is carried out using the “slightly damp” method (BSO).
Filling expansion joints
Insulation of balcony loggias
Thermal insulation of frames and window sills
MARKING BY STANDARD
KNAUF Therm EXPERT Facade λ 32 graphite panels are manufactured in accordance with EN 13 163 + A1: 2015 and have the code:
EPS –EN 13163-T (1) -L (2) -W (2) -S (5) -P (10) -BS75 -DS (N) 2-DS (70, -) 2-TR80
SPECIAL ADVANTAGES OF GRAPHIC POLYSTYRENE:
about 30% less board thickness compared to conventional expanded polystyrene (the ability to use the board on balconies and loggias without significant losses in preserving living space)
higher or equal thermal insulation of the slab with a lower thickness compared to conventional polystyrene slabs.
| λ D Thermal conductivity W/(mK) | ≤ 0,032 |
| Shape | Rectangular or milled |
| Dimensions | 1000 x 500mm max mt.: 4000 x 1200mm |
| Weight [kg/m3] | 12,5 |
| Fire resistance | Self-extinguishing |
| Fire resistance class | E |
| Flexural strength level (kPa) | BS 75 ( ≥75) |
| Tensile strength at force perpendicular to the surface (kPa) | TR 80 ( ≥80 ) |
